| Brand Name : | Customized |
| Certification : | E-Mark, CE, FCC, RoHS |
| Price : | Negotiatable |
| Delivery Time : | 30~60 days |
| Payment Terms : | T/T,L/C |
| Supply Ability : | 100000/Month |
Overview

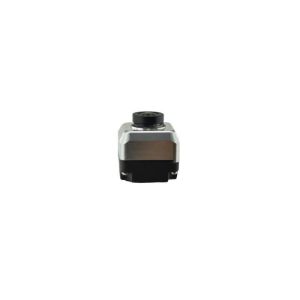

BroadR Reach Camera is designed to transmit video signals to the host computer via Ethernet based on AVB protocol by converting external light signals into electrical signals, which are processed by the internal camera image processor. The hardware framework is mainly composed of lens, CMOS Image Sensor, ISP and PHY.
Main Features
Ethernet 100 baset-T1 camera
720P or 960P HD camera, 140dB wide dynamic range, adapting to all day and night scenes.
Lens angle support customized, small angle or large angle, can be applied to surveillance cameras and surround view cameras
Image delay low than 30ms with fast speed and large signal capacity,provides strict real-time performance.
With 26*26*30MM camera small size design , support a variety of brackets customized to match the original car, making the vehicle appearance more hidden and exquisite.
IP69K waterproof & dustproof
CandidTech's Advantages
Camera independent research and development and manufacturing with strict quality control.
140dB wide dynamic range, can provide clear images at night
IP69K waterproof & dustproof, can be used normally in the harsh environment outside.
Different vehicle appilications,including high-end cars, trams, commercial vehicles, BUS, TAXI, agricultural vehicles and so on.
More Specifications
| Optical format | 1/4 inch |
| FOV | H: 128°±3°V:106°±3° |
| Active Pixel | 1344*968(max resolution) 30fps |
| Signal Noise Ratio | 43.8dB |
| Dynamic Range | 140dB |
| Exposure Control | Auto |
| Gain Control | Auto |
| White Balance Control | Auto |
| Operation Voltage | 9V (5-16V) |
| Working Current | 65±3mA@12V |
| PHY | 100 Mbps |
| Power Consumption | 1W |
| Operation After Start | <1S |
| Operating Temperature | -40℃~+85℃ |
| Storage Temperature | -40℃~+95℃ |
| Output Format | JPEG |
| Output Interface | BroadR-Reach® |
| Connect | 4PIN |
| Reliability Standard | IP6K9K |
| Automotive Standard | AA |
| Cable | Twisted-Pair |
| Size | 26x26x30mm |
| Other parameter customization | Support |
REMARKS: The product appearence including size, strutrue, installation position, color etc. support customized based on your vehicle interior.
Our current product lines covervehicle camerasfor different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email:sales2@candidelectronics.com for more details.
|
|
