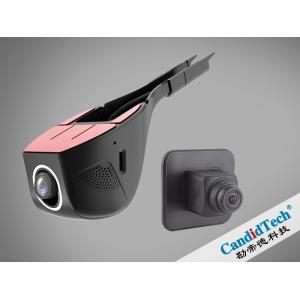

OEM Concealed Type Automative Grade Dash Camera Front And Rear Dual Recording 1080P
OVERVIEW
SPECIFICATIONS
Front Camera | |
Horizontal FOV | 120±3° |
| Vertical FOV | 62±3° |
| F/No | 1.8 |
| Waterproof Level | IP5K5K |
| Structure | 6G+IR Filter |
| Resolutions | 1920(H) x 1080(V) (16:9 mode) |
| Sensitivity | 4.0 V/lux-sec |
| Night Vision | Low light level night vision |
| Frame Rate | 30 fps (1080P) |
| SNR | 48dB min |
| Dynamic Range | 96dB min |
| Minimum Illumination | 50IRE@0.1 Lux |
| Maximum Illumination | 100,000 Lux |
Memory | |
Capacity | 16~128GB |
| Video Files | MP4 |
| Data Protection File | Encryption function |
| Data Processing | When memory card is full, the new videos will cover the old ones. |
Image Compressed Format | H.264 |
| Compression Ratio | 200:1 |
Operation Mode | |
Collision Lock Recording | Automatic lock protection when collision |
| Privacy Protection | Sound turn-off optional |
| Circular Recording Mode | Recording time 1/3/5 minutes setting optional |
| Auto Power On | Yes |
Video Output | |
Video Format | NTSC |
| Output Interface | CVBS signal connect with Wi-Fi then output to mobile phone APP |
| Frame Correction | Build-in |
Power | |
Power Supply | Battery + ACC |
Operation Voltage | 9~16VDC |
Operation Current | 270mA |
Quiescent Current | < 0.3mA |
| Power Consumption | 3W |
General | |
Operation Temperature | -40℃～85℃ |
Storage Temperature | -40℃～95℃ |
DVR Weight | 138g(for reference only) |
| Rear-view Recording Kit | |
| Horizontal FOV | 120±3° |
| Vertical FOV | 62±3° |
| Image Compressed Format | H.264 (MP4) |
| Photo Format | JPG |
| Video Pixel | 2 million pixels |
| Video Output Signal | LVDS |
| Operation Voltage | 5VDC |
| Minimum Illumination | 0.1 lux |
| Frame Rate | 30 fps |
| Waterproof Level | IP6K9K |
| Resolutions | 1920(H) x 1080(V) |
SPECIAL FUNCTIONS
1) Automative Grade 1080P Front and Rear Dual Recording.
2)Outstanding super night vision feature: Powered by advanced optics and intelligent algorithms, it excels in low - light scenarios. Even in near pitch black conditions.This ensures comprehensive surveillance day and night, enhancing driving safety and providing reliable evidence during nocturnal drives.
3) Wi-Fi Connect: Video Playback
User can watch video playback on smart phone.
INSTALLATION
Our current product lines cover vehicle cameras for different applications: including rear view, front view, side view and around view, Dash Cameras, Around View Monitoring Systems, ADAS products,CMS(Camera Monitor System) ,OMS(Occupant monitor system),DMS(Driver Monitor System), and the like. Please email: sales2@candidelectronics.com for more details.
|
|
